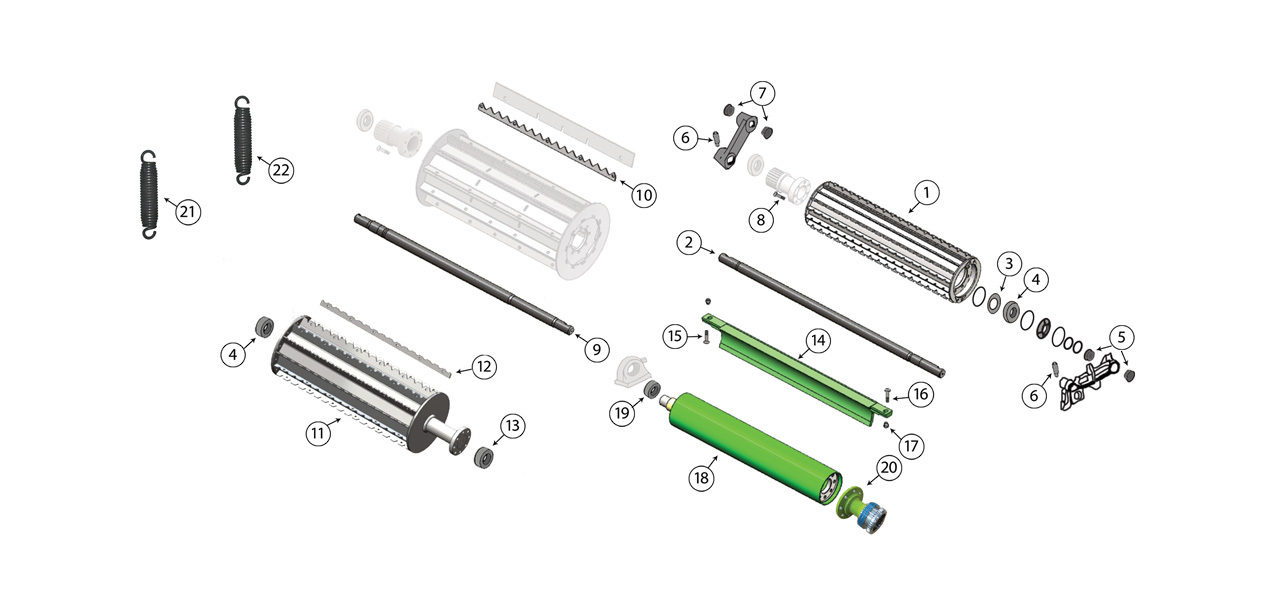

497 Feed Roll Assembly

497 Feed Roll Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
1 K13248910 Upper Rear Feed Roll 13248910 $1,575.00
2 K4951732 Upper Rear Feed Roll Shaft (493, 494, 497, and 498 series) 4951732 $296.10
3 K1782720 Nylon Bearing Cover 1782720 $4.00
4 K2122260 Upper Rear & Lower Front Bearing 2122260 $12.69
5 K0085600 LH Lift Arm Bushing 85600 $3.76
6 K9071323 Lift Arm Key 9071323 $25.85
7 K0085430 Lift Arm Bushing 85430 $3.35
8 K2339661 Drive Hub Bolt (M10) 2339661 $0.90
9 K4952642 Upper Front Feed Roll Shaft (493, 494, 497, & 498 series) 4952642 $338.40
10 K13247000 Upper Front Feed Roll Tooth 13247000 $56.40
