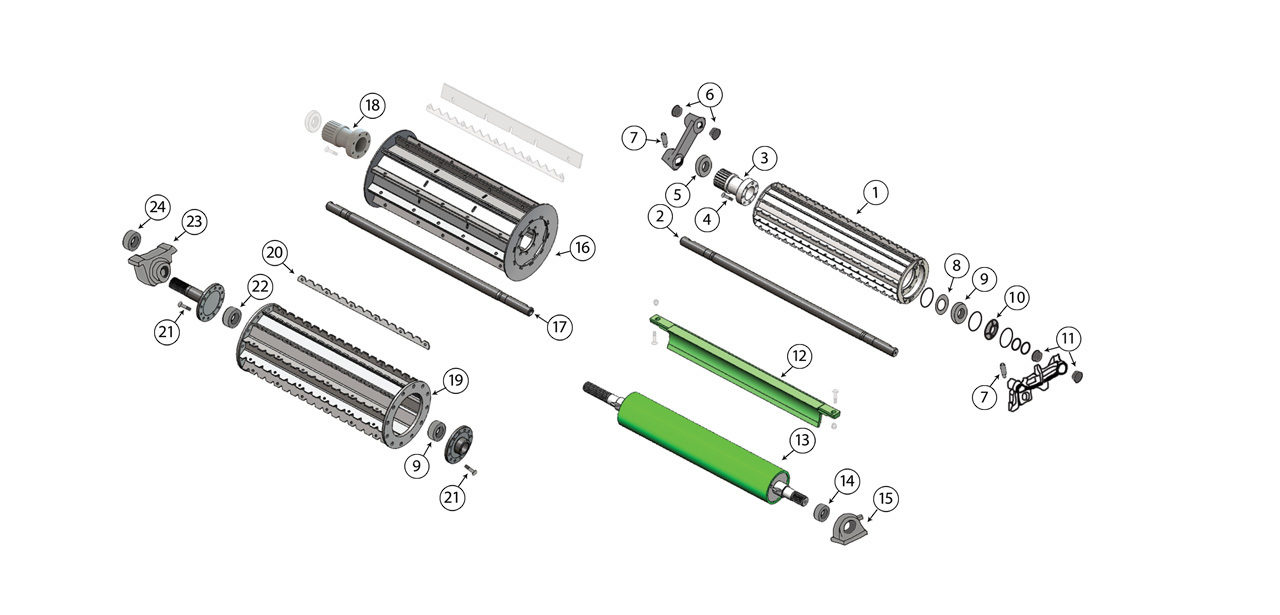

496 Feed Roll Assembly

496 Feed Roll Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
1 K9863261 Upper Rear Feed Roll 9863261 $1,575.00
2 K9844214 Upper Rear Feed Roll Shaft (491 & 492 series) 9844214 $338.40
3 K9844490 Upper Rear Drive Hub 9844490 $310.00
4 K2339661 Drive Hub Bolt (M10) 2339661 $0.90
5 K2114500 Drive Hub Seal 2114500 $10.34
6 K0085430 Lift Arm Bushing 85430 $3.35
7 K9071323 Lift Arm Key 9071323 $25.85
8 K1782720 Nylon Bearing Cover 1782720 $4.00
9 K2122260 Upper Rear & Lower Front Bearing 2122260 $12.69
10 K9844360 LH Roller Ring 9844360 $35.00
