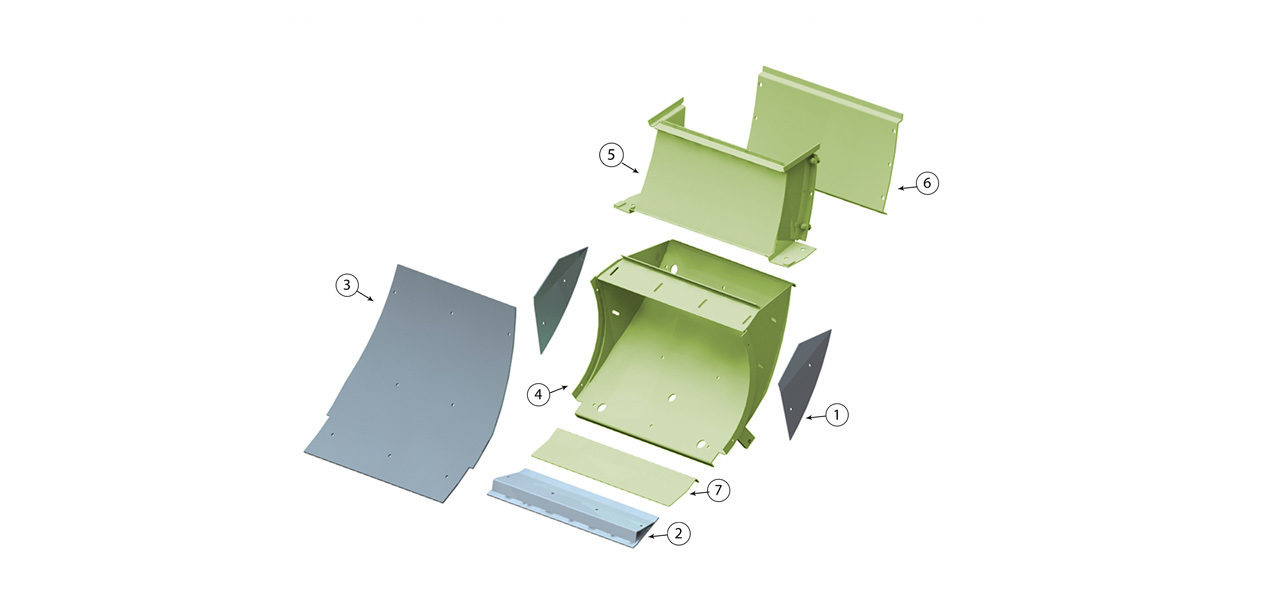

494 Filler Housing Assembly

494-Filler-Housing-Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
3b K0762182BK Wear Plate Bolt Kit $13.00
4 K1406965 Feed Guide (Early 494) 1406965 $244.40
4a K1231056 Feed Guide (Later 494, 496 & 497) 1231058 $368.05
5 K1415261 Transition/Grass Chute Housing (494 series up to SN 49402018) 1415261 $245.75
5a K1234121 Transition/Grass Chute Housing (494 SN 49402914 & after, all 496, 497 & 498 series) 1234122 $313.55
6 K1415240 Transition/Grass Chute Liner (494 SN 49402913 and below) 1415241 $87.45
6a K1234002 Transition/Grass Chute Liner (Later Series) 1234002 $121.97
6b K6088190 OEM Locking Pin for Transition/Grass Chute Liner (491-499) 6088190 $16.75
6c K6012430 Support Washer for K6088190 Locking Pin 6012430 $1.90
7 K1432580 Transition Guide Plate 1432580 $29.50
