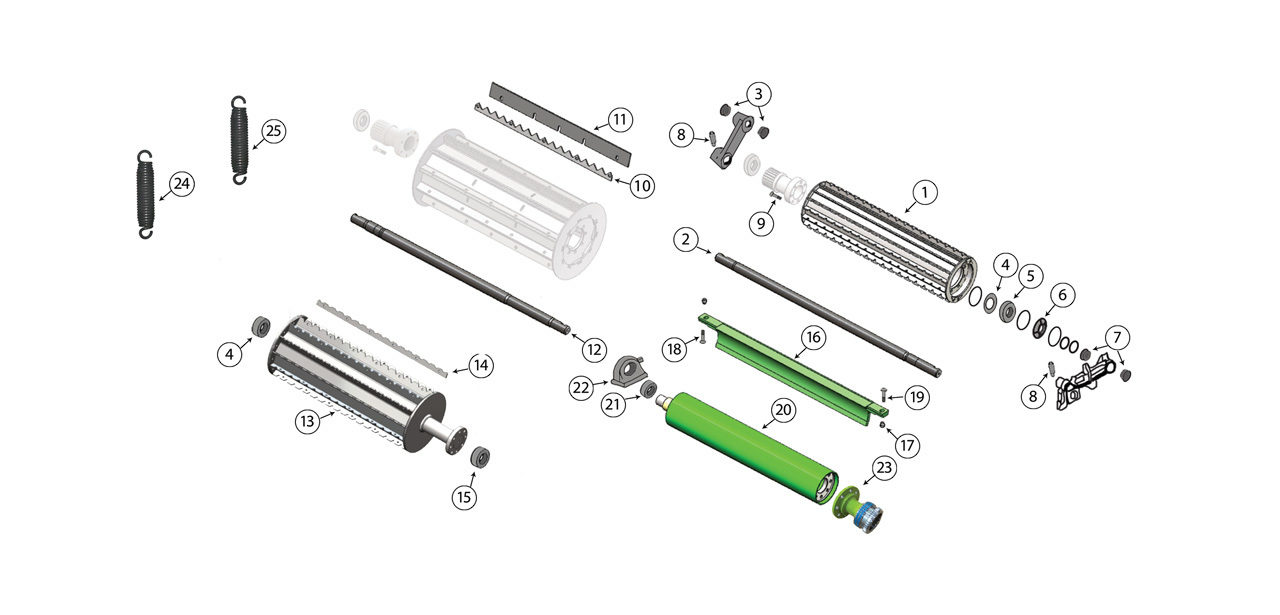

494 Feed Roll Assembly

494 Feed Roll Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
1 K9062020 Upper Rear Feed Roll 9062020 $1,575.00
2 K4951732 Upper Rear Feed Roll Shaft (493, 494, 497, and 498 series) 4951732 $296.10
3 K0085430 Lift Arm Bushing 85430 $3.35
4 K1782720 Nylon Bearing Cover 1782720 $4.00
5 K2122260 Upper Rear & Lower Front Bearing 2122260 $12.69
6 K9844360 LH Roller Ring 9844360 $35.00
7 K0085600 LH Lift Arm Bushing 85600 $3.76
8 K9071323 Lift Arm Key 9071323 $25.85
9 K2339661 Drive Hub Bolt (M10) 2339661 $0.90
10 K9879780 Upper Front Feed Roll Tooth 9879780 $46.35
