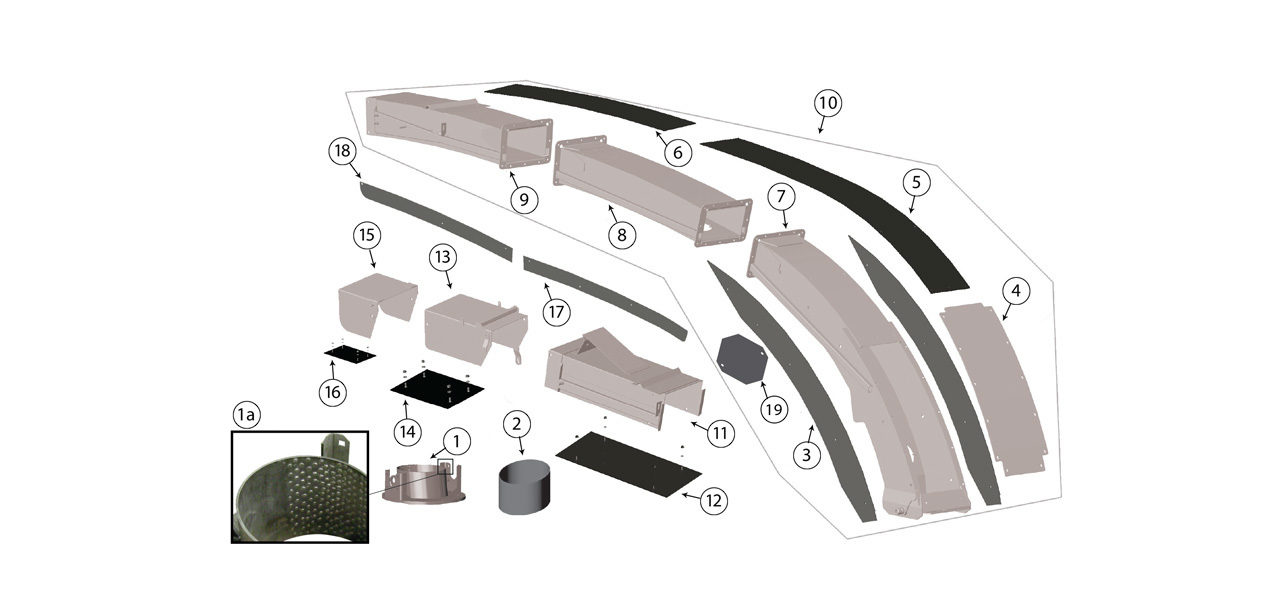

492, 493 Spout Assembly

491-492-493-Spout-Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
1 K0762321 Discharge Spout Swivel Flange 0684693, 0762321 $360.80
1a K0762321HP Koyma Klad® Discharge Spout Swivel Flange 0684693, 0762321 $475.80
2 K0762321WL Replacement Spout Swivel Tube $45.35
3 K0766353 Spout Side Liner 766354 $74.26
3a K0766353BK Bolt Kit for K0766353 $6.25
4 K0682380 Lower Rear Spout Liner 0682382 $98.70
4a K0682380BK Bolt Kit for K0682380 and K0786770 $6.75
5 K0766462 Middle Rear Spout Liner 766463 $74.26
5a K0766462BK Bolt Kit for K0766462 $6.25
6 K0786730 Top Rear Spout Liner 786731 $74.26
