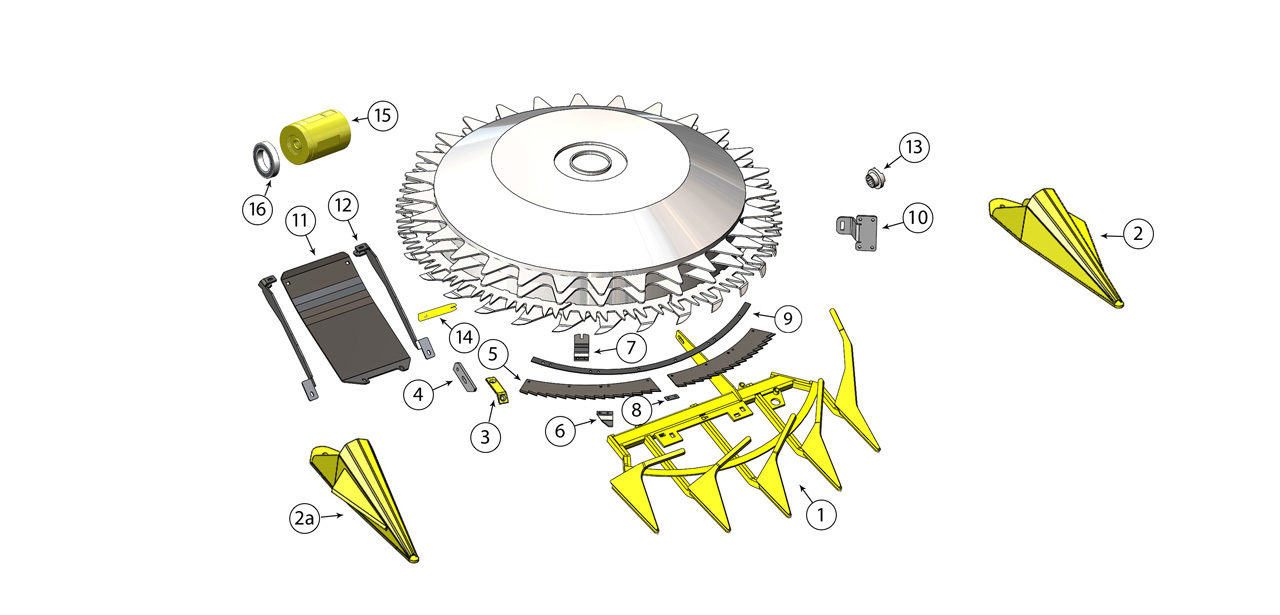

460+ Large Drum Rotary Head Assembly

460plus Large Drum Rotary Head Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
1 KK97977 Inner Large Drum Crop Divider Assembly (LH) LCA97977 $660.00
1 KK97978 Inner Large Drum Crop Divider Assembly (RH) LCA97978 $660.00
2 KK103004 Outside Snoot (Left) LCA103004 $130.75
2a KK103005 Outside Snoot (Right) LCA103005 $130.75
3 KK95370 Rotating Scraper LCA95370 $10.00
4 KK76678 Center Snoot Gathering Point Strap LCA76678 $8.25
5 KK66037LTC Hard-Surfaced Blade LH, large drum LCA66037 $36.50
5 KK66037RTC Hard-Surfaced Blade RH, large drum LCA66037 $36.50
5a KK66037SPL Left Hand Blade, Large Drum LCA66037 $37.75
5a KK66037SPR Right Hand Blade, Large Drum LCA66038 $37.75
