4500, 445, 676 Drive Coupler Assembly

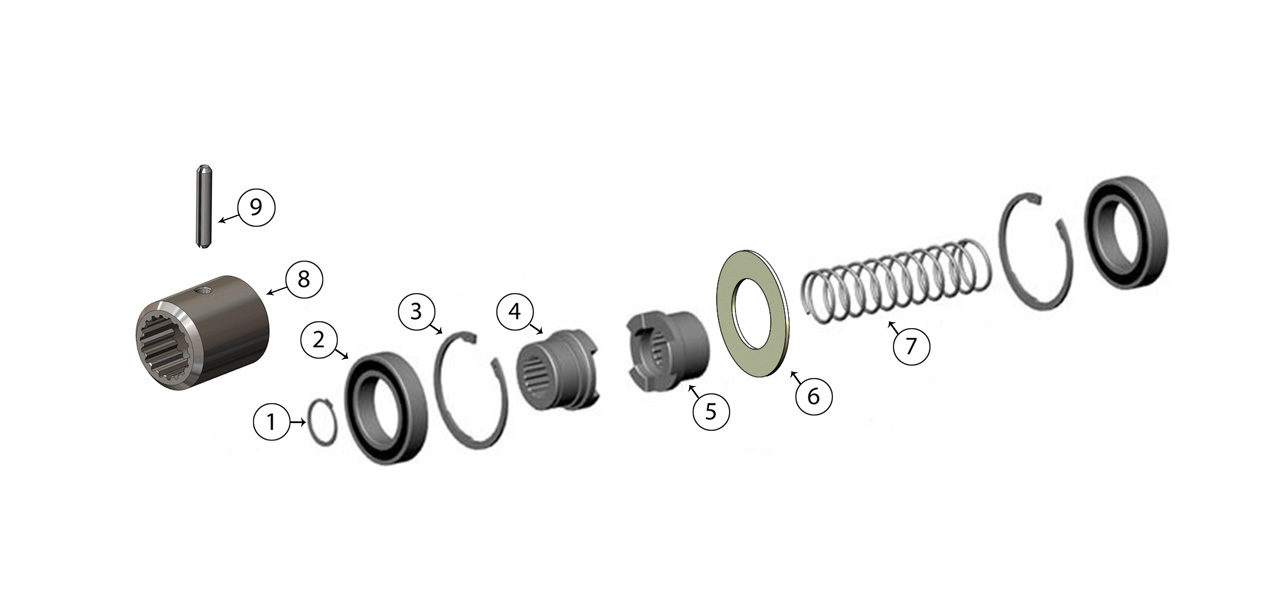

Drive Coupler Assembly

Parts

Sch. ID Product Image Kooima # Title Replaces OEM # Price Quantity
1 KK05539 Small Snap Retaining Ring LCA05539, LCA12228, 40M7066, 40M1841 $6.00
2 KK64557 Bearing for Wing Drive Coupler / Main Drive Clutch LCA64557, JD9241 $39.00
3 KK05375 Large Snap Retaining Ring LCA05375, 40M7060, 40M1873 $10.00
4 KK67316 Outside Wing Drive Coupler LCA67316 $51.75
5 KK67317 Inside Wing Drive Coupler LCA67317 $51.75
6 KK62684 Clutch Disc LCA62684 $8.75
7 KK64574 Compression Spring LCA64574 $17.05
8 KK67319 Wing Drive Shaft Coupler LCA67319 $38.35
9 K7048 Spring Pin $1.25
